Pour créer une animation il faut une suite d'images, ce procédé permet de créer à partir d'une sélection un éventail d'images intermédiaires.
4 périodes d'une heure à la bibliothèque des «quatre piliers» pour réaliser ce mini-programme d'animation, de la sélection dans l'espace du plan.
Cette fonction permet de distribuer régulièrement autant d'élément de la sélection active sur autant de calques (layer en américain) selon une direction et un décalage (offset en américain) et un certain nombre de répétition à déterminer.
La distribution de ces éléments s'effectue selon l'indication de cette direction selon laquelle ils seront projetés un certain nombre de fois avec un décalage entre eux d'une distance égale à celle qui est a définir.
Plus le nombre de répétition(s) est important et selon le facteur de variation entre ces éléments, plus la distance de projection qui est un facteur de ces deux valeurs est multipliée par ces deux coefficients.
Le nombre d'itération(s) (de boucle) va déterminer le nombre d'éléments total, sur autant de calque(s), et la distance entre eux, permet de calculer la distance de projection finale.
Dans un premier temps, il faut créer l'animation en fonction des trois paramètres suivant, orientation déplacement et nombre de répétition, puis simplement de lancer l'animation avec le bouton adéqua.
Cette programmation d'une animation selon trois facteurs d'évolution dans l'espace du plan.
" size="3">Majuscule
pour ajuster l'angle de direction pour obtenir celui-ci par pas de 15° ou bien avec la touche
" size="3">Ctrl pour obtenir un pas de 5° d'angle, ce qui permet d'observer les angles remarquables : 15,30,45,60,90°....
Pour créer une animation il faut une suite d'images, ce procédé permet de créer à partir d'une sélection un éventail d'images intermédiaires.
Par la suite, l'idée nous est venus de l'appliquer à une suite de vecteurs et de points selon la position de chacun d'eux avec un indice sur chacune des listes de tableaux..
 |  |
 " width="200">
|

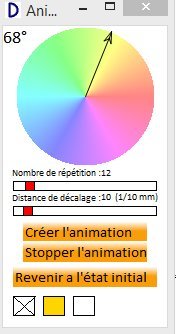

" title="une image dessinée par Jm-Berthoyas"> le dialogue de gestion des calque dispose lui aussi d'une fonction d'animation des calques et rendant visible l'un d'entre eux parmis l'ensemble des calques succésivement.
unit Unit_animation;
interface
uses Windows,c_color,wbase,messages,dialbase,utile;
type
TWin_animation = class(Wbase.TWindow)
constructor Create(AParent:Wbase.TWindow);
procedure Setupwindow; override;
procedure WMpaint(var msg:tmessage); override;
procedure WMCommand(var Msg:tmessage); override;
procedure Make_animation;
procedure Do_animation(ellapse:integer);
procedure Memoriser_l_etat_initiale;
procedure Revenir_a_l_etat_initial;
procedure Positionner_les_curseurs(var Msg: TMessage);
procedure WMLButtonDown(var Msg: TMessage); override;
procedure WMLButtonUp(var Msg: TMessage); override;
procedure WMMOUSEMOVE(var msg:tmessage); override;
procedure WMTimer(var Msg: TMessage); override;
procedure Animation_des_calques;
procedure WMClose(var msg:TMessage); override;
procedure WMSet_painture_control(var Msg: TMessage); override;
private
angle:integer;
down:boolean;
offset,count:integer;
timer_actif:boolean;
variation_des_couleurs:boolean;
color_one,color_two:tcolorref;
color_one_picker:boolean;
color_two_picker:boolean;
end;
implementation
uses u_object,col_plan,wutil,wproche,unit_menu,g_base,wmain,
wmenuk,deformat,U_fast_bitmap,haide,
hls_rvb,sysutils,z_open_file,Dial_champs,
GDIPAPI,gdipobj,Classes,relation,graphics,drawsym;
{Ces unités avec ces définitions}
var rect_repetition : trect;
rect_decalage : trect;
rect_create_animation : trect;
rect_lancer_animation : trect;
rect_remise_a_zero : trect;
rect_allow_color : trect;
rect_color_one : trect;
rect_color_two : trect;
const k_offset = 160;
kid_animation = 1000;
constructor TWin_animation.Create(AParent:Wbase.TWindow);
const k_window_size =180;
begin
inherited Create(AParent,'Animate',
getsystemmetrics(SM_CXFULLSCREEN) div 2-k_window_size div 2,
getsystemmetrics(SM_CYFULLSCREEN) div 2-k_window_size div 2,
k_window_size,k_window_size+k_offset,True,false,0); {True pour l'exstyle}
Self.Memoriser_l_etat_initiale;
end; {TWin_animation.Create}
procedure TWin_animation.Setupwindow;
begin
inherited Setupwindow;
self.angle:=90;
self.down:=False;
self.timer_actif:=False;
self.offset:=10;
self.count:=12;
self.variation_des_couleurs:=false;
self.color_one:=g_base.RGB_Bleu;
self.color_two:=g_base.RGB_blanc;
self.color_one_picker:=false;
self.color_two_picker:=false;
end;
procedure TWin_animation.WMpaint(var msg:tmessage);
var i,j:integer;
paintdc,memdc,memorydc:hdc;
arect:trect;
PaintStruct:TPaintStruct;
une_distance,un_angulary:real;
une_couleur:tcolorref;
old_bitmap,old_deux_bitmap:hbitmap;
apc:pc100;
une_typo:hfont;
abrush:hbrush;
apoint:tpoint;
Size:tsize;
lr_angle_en_radian:real;
graphics:gdipobj.TGPGraphics;
pencil_vanille:TGPPen;
faster:U_fast_bitmap.TFastBitmap2;
bitmap:tbitmap;
time_before:integer;
begin
time_before:=gettickcount;
getcursorpos(apoint);
screentoclient(self.hwindow,apoint);
getclientrect(self.hwindow,arect);
paintdc:=windows.beginpaint(self.hwindow,PaintStruct);
memdc:=createcompatibledc(paintdc);
with arect do old_bitmap:=selectobject(memdc,createcompatiblebitmap(paintdc,right,bottom));
rectangle(memdc,-1,-1,succ(arect.right),succ(arect.bottom));
if false then ellipse(paintdc,20,20,arect.right-20,arect.bottom-20);
if true then
begin
with arect do faster.Creer(right,bottom);
//Ceci pour dessiner la roue des couleurs un disque
//Quelque soit la position d'un point si la distance de celui-ci
//Par rapport au centre du cercle est inférieur au rayon le colorier.
for i:=0 to arect.right do for j:=0 to arect.bottom-k_offset do
begin
une_distance:=utile.distance(i,j,arect.right div 2,(arect.bottom-k_offset) div 2);
if une_distance<69 then //année érotique et celle de colas
begin
un_angulary:=angle_degree(arect.right div 2,(arect.bottom-k_offset) div 2,i,j);
une_couleur:=hls_rvb.Get_HLS_RGB(un_angulary,0.76,1);
faster.SetPixel(i,j,une_couleur); {Celle-ci est 10 fois plus rapide}
end;
end;
memorydc:=createcompatibledc(paintdc);
selectobject(memorydc,faster.Bmp.Handle);
with arect do bitblt(memdc,0,0,right,bottom,memorydc,0,0,SRCCOPY);
deletedc(memorydc);
faster.Free;
end
else
begin
for i:=0 to arect.right do for j:=0 to arect.bottom-k_offset do
begin
une_distance:=utile.distance(i,j,arect.right div 2,(arect.bottom-k_offset) div 2);
if une_distance<69 then //année érotique et celle de colas
begin
un_angulary:=angle_degree(arect.right div 2,(arect.bottom-k_offset) div 2,i,j);
une_couleur:=hls_rvb.Get_HLS_RGB(un_angulary,0.76,1);
setpixel(memdc,i,j,une_couleur); {cette fonction microsoft est trop lente}
end;
end;
end;
if true then
drawsym.draw_help_twip(memdc,arect.right-20,4);
lr_angle_en_radian:=self.angle*pi/180;
if true then
begin
//Ceci pour dessiner la flèche d'indication de la direction de l'animation.
graphics := gdipobj.TGPGraphics.Create(memdc);
graphics.SetSmoothingMode(SmoothingModeAntiAlias);
graphics.SetSmoothingMode(SmoothingModeHighQuality);
pencil_vanille:=TGPPen.Create(MakeColor(255,0,0,0),1);
graphics.DrawLine(pencil_vanille,
arect.right div 2,(arect.bottom-k_offset) div 2,
arect.right div 2+cos(lr_angle_en_radian)*70,
(arect.bottom-k_offset) div 2-sin(lr_angle_en_radian)*70);
graphics.DrawLine(pencil_vanille,
arect.right div 2+round(cos(lr_angle_en_radian)*70),
(arect.bottom-k_offset) div 2-round(sin(lr_angle_en_radian)*70),
arect.right div 2+(cos(lr_angle_en_radian)*70+cos(lr_angle_en_radian+pi-pi/10)*12),
(arect.bottom-k_offset) div 2-(sin(lr_angle_en_radian)*70+sin(lr_angle_en_radian+pi-pi/10)*12));
graphics.DrawLine(pencil_vanille,
arect.right div 2+cos(lr_angle_en_radian)*70+cos(lr_angle_en_radian+pi-pi/10)*12,
(arect.bottom-k_offset) div 2-(sin(lr_angle_en_radian)*70+sin(lr_angle_en_radian+pi-pi/10)*12),
arect.right div 2+round(cos(lr_angle_en_radian)*63),
(arect.bottom-k_offset) div 2-round(sin(lr_angle_en_radian)*63));
graphics.DrawLine(pencil_vanille,
arect.right div 2+round(cos(lr_angle_en_radian)*70),
(arect.bottom-k_offset) div 2-round(sin(lr_angle_en_radian)*70),
arect.right div 2+(cos(lr_angle_en_radian)*70+cos(lr_angle_en_radian+pi+pi/10)*12),
(arect.bottom-k_offset) div 2-(sin(lr_angle_en_radian)*70+sin(lr_angle_en_radian+pi+pi/10)*12));
graphics.DrawLine(pencil_vanille,
arect.right div 2+cos(lr_angle_en_radian)*70+cos(lr_angle_en_radian+pi+pi/10)*12,
(arect.bottom-k_offset) div 2-(sin(lr_angle_en_radian)*70+sin(lr_angle_en_radian+pi+pi/10)*12),
arect.right div 2+cos(lr_angle_en_radian)*63,
(arect.bottom-k_offset) div 2-sin(lr_angle_en_radian)*63);
pencil_vanille.Free;
graphics.free;;
end {written by denis BeeLog le 15 september 2016, aucune équations en erreur}
else
begin
moveto(memdc,arect.right div 2,(arect.bottom-k_offset) div 2);
lineto(memdc,
arect.right div 2+round(cos(lr_angle_en_radian)*70),
(arect.bottom-k_offset) div 2-round(sin(lr_angle_en_radian)*70));
lineto(memdc,
arect.right div 2+round(cos(lr_angle_en_radian)*70+cos(lr_angle_en_radian+pi-pi/10)*12),
(arect.bottom-k_offset) div 2-round(sin(lr_angle_en_radian)*70+sin(lr_angle_en_radian+pi-pi/10)*12));
lineto(memdc,
arect.right div 2+round(cos(lr_angle_en_radian)*65),
(arect.bottom-k_offset) div 2-round(sin(lr_angle_en_radian)*65));
moveto(memdc,
arect.right div 2+round(cos(lr_angle_en_radian)*70),
(arect.bottom-k_offset) div 2-round(sin(lr_angle_en_radian)*70));
lineto(memdc,
arect.right div 2+round(cos(lr_angle_en_radian)*70+cos(lr_angle_en_radian+pi+pi/10)*12),
(arect.bottom-k_offset) div 2-round(sin(lr_angle_en_radian)*70+sin(lr_angle_en_radian+pi+pi/10)*12));
lineto(memdc,
arect.right div 2+round(cos(lr_angle_en_radian)*65),
(arect.bottom-k_offset) div 2-round(sin(lr_angle_en_radian)*65));
end;
setbkmode(memdc,TRANSPARENT);
inttopchar(self.angle,apc); strcat(apc,wutil.kpc_degree); //L'angle en degré
une_typo:=selectobject(memdc,Get_MakeDefaultCalibri(22)); //La taille du corps de la typo
textout(memdc,0,0,apc,strlen(apc));
deleteobject(selectobject(memdc,une_typo));
//Affichage du nombre de répétiton(s).
une_typo:=selectobject(memdc,Get_MakeDefaultCalibri(12));
settextcolor(memdc,g_base.RGB_Blanc);
Textout(memdc,8,140,z_open_file.string_nombre_de_repetition,strlen(z_open_file.string_nombre_de_repetition));
settextcolor(memdc,g_base.RGB_Noir);
Textout(memdc,9,141,z_open_file.string_nombre_de_repetition,strlen(z_open_file.string_nombre_de_repetition));
GetTextExtentPoint(memdc,z_open_file.string_nombre_de_repetition,strlen(z_open_file.string_nombre_de_repetition),Size);
inttopchar(self.count,apc);
Textout(memdc,9+size.cx,141,apc,strlen(apc));
setrect(Unit_animation.rect_repetition,10,155,arect.right-10,165);
with Unit_animation.rect_repetition do
begin
rectangle(memdc,left,top,right,bottom);
abrush:=selectobject(memdc,createsolidbrush(g_base.rgb_rouge));
rectangle(memdc,left+Self.count,top,left+Self.count+10,bottom);
deleteobject(selectobject(memdc,abrush));
end;
//Affichage de la distance de décalage.
settextcolor(memdc,g_base.RGB_Blanc);
Textout(memdc,8,165,z_open_file.string_distance_de_decalage,strlen(z_open_file.string_distance_de_decalage));
settextcolor(memdc,g_base.RGB_Noir);
Textout(memdc,9,166,z_open_file.string_distance_de_decalage,strlen(z_open_file.string_distance_de_decalage));
GetTextExtentPoint(memdc,z_open_file.string_distance_de_decalage,strlen(z_open_file.string_distance_de_decalage),Size);
inttopchar(self.offset,apc);strcat(apc,' (1/10 mm)');
Textout(memdc,9+size.cx,165,apc,strlen(apc));
deleteobject(selectobject(memdc,une_typo));
setrect(Unit_animation.rect_decalage,10,180,arect.right-10,190);
with Unit_animation.rect_decalage do
begin
rectangle(memdc,left,top,right,bottom);
abrush:=selectobject(memdc,createsolidbrush(g_base.rgb_rouge));
rectangle(memdc,left+Self.offset,top,left+Self.offset+10,bottom);
deleteobject(selectobject(memdc,abrush));
end;
//Créer l'animation
setrect(Unit_animation.rect_create_animation,20,195,arect.right-20,215);
with Unit_animation.rect_create_animation do
begin
if ptinrect(Unit_animation.rect_create_animation,apoint) then
begin
settextcolor(memdc,g_base.RGB_Orange);
Soft_rectangle(memdc,left,top,right,bottom,g_base.RGB_bleu);
end
else
begin
settextcolor(memdc,g_base.RGB_Noir);
Soft_rectangle(memdc,left,top,right,bottom,g_base.RGB_Orange);
end;
une_typo:=selectobject(memdc,Get_MakeDefaultCalibri(18));
Textout(memdc,left+2,top+2,
z_open_file.string_create_animation,strlen(z_open_file.string_create_animation));
deleteobject(selectobject(memdc,une_typo));
end;
//lancer l'animation
setrect(Unit_animation.rect_lancer_animation,20,215,arect.right-20,235);
with Unit_animation.rect_lancer_animation do
begin
if ptinrect(Unit_animation.rect_lancer_animation,apoint) then
begin
settextcolor(memdc,g_base.RGB_Orange);
Soft_rectangle(memdc,left,top,right,bottom,g_base.RGB_bleu);
end
else
begin
settextcolor(memdc,g_base.RGB_Noir);
Soft_rectangle(memdc,left,top,right,bottom,g_base.RGB_Orange);
end;
une_typo:=selectobject(memdc,Get_MakeDefaultCalibri(18));
if not self.timer_actif then
Textout(memdc,left+2,top+2,
z_open_file.string_launch_animation,strlen(z_open_file.string_launch_animation))
else
Textout(memdc,left+2,top+2,
z_open_file.string_stop_animation,strlen(z_open_file.string_stop_animation));
deleteobject(selectobject(memdc,une_typo));
end;
//Remise à zéro
setrect(Unit_animation.rect_remise_a_zero,10,240,arect.right-10,260);
with Unit_animation.rect_remise_a_zero do
begin
if ptinrect(Unit_animation.rect_remise_a_zero,apoint) then
begin
settextcolor(memdc,g_base.RGB_Orange);
Soft_rectangle(memdc,left,top,right,bottom,g_base.RGB_bleu);
end
else
begin
settextcolor(memdc,g_base.RGB_Noir);
Soft_rectangle(memdc,left,top,right,bottom,g_base.RGB_Orange);
end;
une_typo:=selectobject(memdc,Get_MakeDefaultCalibri(18));
if not self.timer_actif then
Textout(memdc,left+2,top+2,
z_open_file.string_remise_a_zero,strlen(z_open_file.string_remise_a_zero))
else
Textout(memdc,left+2,top+2,
z_open_file.string_remise_a_zero,strlen(z_open_file.string_remise_a_zero));
deleteobject(selectobject(memdc,une_typo));
end;
{Positionner les cases de variation des couleurs}
setrect(rect_allow_color,10,270,32,290);
with rect_allow_color do rectangle(memdc,left,top,right,bottom);
if self.variation_des_couleurs then
begin
if true then
begin
graphics := gdipobj.TGPGraphics.Create(memdc);
graphics.SetSmoothingMode(SmoothingModeAntiAlias);
graphics.SetSmoothingMode(SmoothingModeHighQuality);
pencil_vanille:=TGPPen.Create(MakeColor(255,0,0,0),1);
with rect_allow_color do
begin
graphics.DrawLine(pencil_vanille,left,top,pred(right),pred(bottom));
graphics.DrawLine(pencil_vanille,pred(right),top,left,pred(bottom));
end;
pencil_vanille.free;
graphics.free;
end
else
begin
with rect_allow_color do
begin
moveto(memdc,left,top);
lineto(memdc,right,bottom);
moveto(memdc,right,top);
lineto(memdc,left,bottom);
end;
end;
abrush:=selectobject(memdc,createsolidbrush(self.color_one));
setrect(rect_color_one,40,270,62,290);
with rect_color_one do rectangle(memdc,left,top,right,bottom);
deleteobject(selectobject(memdc,abrush));
abrush:=selectobject(memdc,createsolidbrush(self.color_two));
setrect(rect_color_two,70,270,92,290);
with rect_color_two do rectangle(memdc,left,top,right,bottom);
deleteobject(selectobject(memdc,abrush));
end;
{Plaquer l'image de la cachette sur la fenêtre}
with arect do Bitblt(paintdc,0,0,right,bottom,memdc,0,0,SRCCOPY);
deleteobject(selectobject(memdc,old_bitmap));
deleteDC(memdc);
windows.endpaint(self.hwindow,PaintStruct);
wmain.Status_window.Show_time_during_of_operation(time_before);
end; {TWin_animation.WMpaint}
procedure TWin_animation.Positionner_les_curseurs(var Msg: TMessage);
var apoint:tpoint;
another_rect:trect;
begin
apoint.x:=Smallint(loword(msg.lparam));
apoint.y:=Smallint(hiword(msg.lparam));
another_rect:=rect_repetition;
dec(another_rect.right,10);
{Just another sofware compagnie}
if ptinrect(another_rect,apoint) then
begin
self.count:=apoint.x-10;
invalidaterect(self.hwindow,nil,false);
end;
another_rect:=rect_decalage;
dec(another_rect.right,10);
if ptinrect(another_rect,apoint) then
begin
self.offset:=apoint.x-10;
invalidaterect(self.hwindow,nil,false);
end;
end; {TWin_animation.positionner_les_curseurs}
procedure TWin_animation.WMCommand(var Msg: Tmessage);
begin {TWin_animation.WMCommand}
inherited WMCommand(Msg);
case LOWORD(msg.wparam) of
Dial_champs.unit_timer_10_millisecondes:do_animation(10);
Dial_champs.unit_timer_50_millisecondes:do_animation(50);
Dial_champs.unit_timer_75_millisecondes:do_animation(75);
Dial_champs.unit_timer_100_millisecondes:do_animation(100);
Dial_champs.unit_timer_200_millisecondes:do_animation(200);
Dial_champs.unit_timer_300_millisecondes:do_animation(300);
Dial_champs.unit_timer_400_millisecondes:do_animation(400);
Dial_champs.unit_timer_500_millisecondes:do_animation(500);
Dial_champs.unit_timer_1000_millisecondes:do_animation(1000);
Dial_champs.unit_timer_2000_millisecondes:do_animation(2000);
Dial_champs.unit_timer_3000_millisecondes:do_animation(3000);
Dial_champs.unit_timer_4000_millisecondes:do_animation(4000);
Dial_champs.unit_timer_5000_millisecondes:do_animation(5000);
Dial_champs.unit_timer_25_images_par_secondes:do_animation(40);
Dial_champs.unit_timer_50_images_par_secondes:do_animation(20);
end; {case}
end; {TWin_animation.WMCommand}
const ks_nom_du_fichier_initial = 'temp\animation_raz.ato';
procedure TWin_animation.Memoriser_l_etat_initiale;
var nom_du_fichier_temporaire:wutil.pc1024;
begin
wutil.get_exe_path(nom_du_fichier_temporaire);
strcat(nom_du_fichier_temporaire,Unit_animation.ks_nom_du_fichier_initial);
wmain.MainWindow.Sauvegarder_en_ATO(strpas(nom_du_fichier_temporaire),false,false,false);
end;
procedure TWin_animation.Revenir_a_l_etat_initial;
var nom_du_fichier_temporaire:wutil.pc1024;
begin
wutil.get_exe_path(nom_du_fichier_temporaire);
strcat(nom_du_fichier_temporaire,Unit_animation.ks_nom_du_fichier_initial);
wmain.MainWindow.Lecture_du_fichier(nom_du_fichier_temporaire);
end;
procedure TWin_animation.do_animation(ellapse:integer);
begin
if not Self.timer_actif then
begin
Self.timer_actif:=True;
Settimer(self.hwindow,kid_animation,ellapse,nil);
invalidaterect(self.hwindow,nil,false);
end;
end; {TWin_animation.do_animation}
procedure TWin_animation.Make_animation;
var i,j:integer;
temp_file_transition:pc1024; {of caractères}
calque_relatif:pc1024; {of caractères}
pc_layer:pc1024; {of caractères}
pc_index:pc20;
un_calque_actif:col_plan.TCalque;
un_index:u_object.tindex;
an_element:u_object.tforme_color;
error:boolean;
flux_des_transitions:Classes.tfilestream;
nb_repetition:integer;
deplacement_offset:tpoint;
begin
un_calque_actif:=wmain.MainWindow.wmsg.col_dessin.Get_calque_actif;
if un_Calque_actif=nil then begin bip; exit; end;
wutil.get_exe_path(temp_file_transition);
strcat(temp_file_transition,'temp\transition.ato');
{Une itération de boucle pour faire varier la position d'un élément}
if true then
begin
error:=False;
flux_des_transitions:=tfilestream.Create(temp_file_transition,fmCreate);
nb_repetition:=Self.count;
deplacement_offset.x:=+round(cos(self.angle*pi/180)*relation._10mm_to_log_pouce(self.offset));
deplacement_offset.y:=-round(sin(self.angle*pi/180)*relation._10mm_to_log_pouce(self.offset));
for i:=1 to nb_repetition do
begin
inttopchar(i,pc_index);
strcat(strcat(strcopy(calque_relatif,string_Transition),'_'),pc_index);
strcat(strcat(strcopy(pc_layer,'Layer name="'),calque_relatif),'"'+CRLF);
flux_des_transitions.WriteBuffer(pc_layer,strlen(pc_layer));
for j:=0 to pred(un_Calque_actif.col_select.Count) do
begin
un_index:=un_Calque_actif.col_select.at(j);
if un_index<>nil then
begin
an_element:=un_calque_actif.formindex(un_index);
if an_element<>nil then
begin
an_element.deplace(i*deplacement_offset.x,i*deplacement_offset.y,0);
if self.variation_des_couleurs then
begin
an_element.couleur_pinceau:=deformat.IN_Between_longint_RGB(self.color_one,self.color_two,i,nb_repetition);
an_element.brush1.lbColor:=an_element.couleur_pinceau;
end;
an_element.Export_ato(flux_des_transitions,error,self.hwindow);
an_element.deplace(-i*deplacement_offset.x,-i*deplacement_offset.y,0);
end;
end;
end; {For j}
end; {For i}
flux_des_transitions.Free;
end; {an_element<>nil}
wmain.MainWindow.Lecture_du_fichier(temp_file_transition);
end; {TWin_animation.Make_animation}
procedure TWin_animation.WMLButtonDown(var Msg: TMessage);
var apoint,un_point_menu_popup:tpoint; un_menu_popup:hmenu;
begin
apoint.x:=Smallint(loword(msg.lparam));
apoint.y:=Smallint(hiword(msg.lparam));
self.down:=true;
self.WMMOUSEMOVE(msg);
self.Positionner_les_curseurs(Msg);
if ptinrect(Unit_animation.rect_lancer_animation,apoint) then
begin
if self.timer_actif then
begin
self.timer_actif:=False;
killtimer(self.hwindow,kid_animation);
invalidaterect(self.hwindow,nil,false);
invalidaterect(wmain.MainWindow.hwindow,nil,false);
end
else
begin
un_menu_popup:=CreatePopUpMenu;
Appendmenu(un_menu_popup,MF_String,Dial_champs.unit_timer_10_millisecondes,'10 millisecondes');
Appendmenu(un_menu_popup,MF_String,Dial_champs.unit_timer_50_millisecondes,'50 millisecondes');
Appendmenu(un_menu_popup,MF_String,Dial_champs.unit_timer_75_millisecondes,'75 millisecondes');
Appendmenu(un_menu_popup,MF_String,Dial_champs.unit_timer_100_millisecondes,'100 millisecondes');
Appendmenu(un_menu_popup,MF_String,Dial_champs.unit_timer_200_millisecondes,'200 millisecondes');
Appendmenu(un_menu_popup,MF_String,Dial_champs.unit_timer_300_millisecondes,'300 millisecondes');
Appendmenu(un_menu_popup,MF_String,Dial_champs.unit_timer_400_millisecondes,'400 millisecondes');
Appendmenu(un_menu_popup,MF_String,Dial_champs.unit_timer_500_millisecondes,'500 millisecondes');
Appendmenu(un_menu_popup,MF_String,Dial_champs.unit_timer_1000_millisecondes,'Une seconde');
Appendmenu(un_menu_popup,MF_String,Dial_champs.unit_timer_2000_millisecondes,'Deux secondes');
Appendmenu(un_menu_popup,MF_String,Dial_champs.unit_timer_3000_millisecondes,'Trois secondes');
Appendmenu(un_menu_popup,MF_String,Dial_champs.unit_timer_4000_millisecondes,'Quatre secondes');
Appendmenu(un_menu_popup,MF_String,Dial_champs.unit_timer_5000_millisecondes,'Cinq secondes');
Appendmenu(un_menu_popup,MF_SEPARATOR,0,nil);
Appendmenu(un_menu_popup,MF_String,Dial_champs.unit_timer_25_images_par_secondes,'25 images par secondes');
Appendmenu(un_menu_popup,MF_String,Dial_champs.unit_timer_50_images_par_secondes,'50 images par secondes');
GetCursorPos(un_point_menu_popup);
TrackPopupMenu(un_menu_popup,0,un_point_menu_popup.x,un_point_menu_popup.y,0,self.hwindow,nil);
end;
end
else if ptinrect(rect_create_animation,apoint) then
self.Make_animation
else if ptinrect(rect_remise_a_zero,apoint) then
self.Revenir_a_l_etat_initial
else if ptinrect(rect_allow_color,apoint) then
begin
self.variation_des_couleurs:=not self.variation_des_couleurs;
invalidaterect(self.hwindow,nil,false);
end;
end; {TWin_animation.WMLButtonDown}
procedure TWin_animation.WMLButtonUp(var Msg: TMessage);
var apoint:tpoint;
arect,arect_help:trect;
my_color_picker:c_color.tw_color_surgissante;
begin
getclientrect(self.hwindow,arect);
apoint.x:=Smallint(loword(msg.lparam));
apoint.y:=Smallint(hiword(msg.lparam));
self.down:=false;
if ptinrect(rect_color_one,apoint) then
begin
color_one_picker:=true;
color_two_picker:=false;
my_color_picker:=c_color.tw_color_surgissante.Create(self,false,false);
end
else if ptinrect(rect_color_two,apoint) then
begin
color_one_picker:=false;
color_two_picker:=true;
my_color_picker:=c_color.tw_color_surgissante.Create(self,false,false);
end;
setrect(arect_help,arect.right-20,4,arect.right-4,20);
if ptinrect(arect_help,apoint) then
haide.aide_context_by_string('animation');
end; {TWin_animation.WMLButtonUp}
procedure TWin_animation.WMMOUSEMOVE(var msg:tmessage);
var apoint:tpoint;
arect:trect;
une_distance:real;
begin
if self.down then
begin
getclientrect(self.hwindow,arect);
apoint.x:=Smallint(loword(msg.lparam));
apoint.y:=Smallint(hiword(msg.lparam));
une_distance:=utile.distance(apoint.x,apoint.y,arect.right div 2,(arect.bottom-k_offset) div 2);
if une_distance<69 then //année érotique et celle de colas
begin
self.angle:=round(angle_degree(arect.right div 2,(arect.bottom-k_offset) div 2,apoint.x,apoint.y));
if (GetKeyState(VK_SHIFT)<0) then
self.angle:=round(self.angle/15)*15
else if (GetKeyState(VK_LCONTROL)<0) then
self.angle:=round(self.angle/5)*5;
invalidaterect(self.hwindow,nil,false);
end;
self.Positionner_les_curseurs(Msg);
end; {touche down appuyée}
invalidaterect(self.hwindow,nil,false);
end; {TWin_animation.WMMOUSEMOVE-Denis B. le 10 septembre 2016}
procedure TWin_animation.WMTimer(var Msg: TMessage);
begin
if loword(msg.wparam)=kid_animation then
self.Animation_des_calques;
end; {TWin_animation.WMTimer}
procedure TWin_animation.Animation_des_calques;
var i,isel:integer;
un_calque:col_plan.TCalque;
old_cursor:boolean;
begin
isel:=-1;
//Détecter le calque actif et visible
for i:=0 to pred(wmain.MainWindow.wmsg.col_dessin.list_calque.Count) do
begin
un_calque:=col_plan.TCalque(wmain.MainWindow.wmsg.col_dessin.list_calque.at(i));
if (un_calque<>nil) and (un_calque.ClassType=col_plan.TCalque) then
if un_calque.visible=1 then
isel:=i;
end;
//Passer tous les calques à invisible
for i:=0 to pred(wmain.MainWindow.wmsg.col_dessin.list_calque.Count) do
begin
un_calque:=col_plan.TCalque(wmain.MainWindow.wmsg.col_dessin.list_calque.at(i));
if (un_calque<>nil) and (un_calque.ClassType=col_plan.TCalque) then
un_calque.visible:=0;
end;
//Activer le calque suivant ou le premier calque si la boucle est terminée
isel:=(succ(isel)) mod wmain.MainWindow.wmsg.col_dessin.list_calque.count;
un_calque:=col_plan.TCalque(wmain.MainWindow.wmsg.col_dessin.list_calque.at(isel));
if (un_calque<>nil) and (un_calque.ClassType=col_plan.TCalque) then
un_calque.visible:=1;
old_cursor:=wmain.MainWindow.bool_show_cursor_when_redraw;
wmain.MainWindow.bool_show_cursor_when_redraw:=false;
invalidaterect(wmain.MainWindow.hwindow,nil,false);
updatewindow(wmain.MainWindow.hwindow);
wmain.MainWindow.bool_show_cursor_when_redraw:=old_cursor;
if (GetKeyState(vk_Control)<0)
or (GetKeyState(vk_shift)<0) then
begin
sendmessage(wmain.MainWindow.hwindow,wm_selection_changer,0,0);
end;
end; {TWin_animation.Animation_des_calques}
procedure TWin_animation.WMClose(var msg:TMessage);
begin
if self.timer_actif then
killtimer(self.hwindow,kid_animation);
postmessage(wmain.MainWindow.hwindow,wm_selection_changer,0,0);
inherited WMClose(msg);
end;
procedure TWin_animation.WMSet_painture_control(var Msg: TMessage);
begin
if self.color_one_picker then
self.color_one:=msg.LParam
else if self.color_two_picker then
self.color_two:=msg.LParam;
invalidaterect(self.hwindow,nil,false);
end; {TWin_animation.WMSet_painture_control}
end.
