unit U_add_ray; {écrit par denis bertin le 18.6.2012 les droits d'auteur}

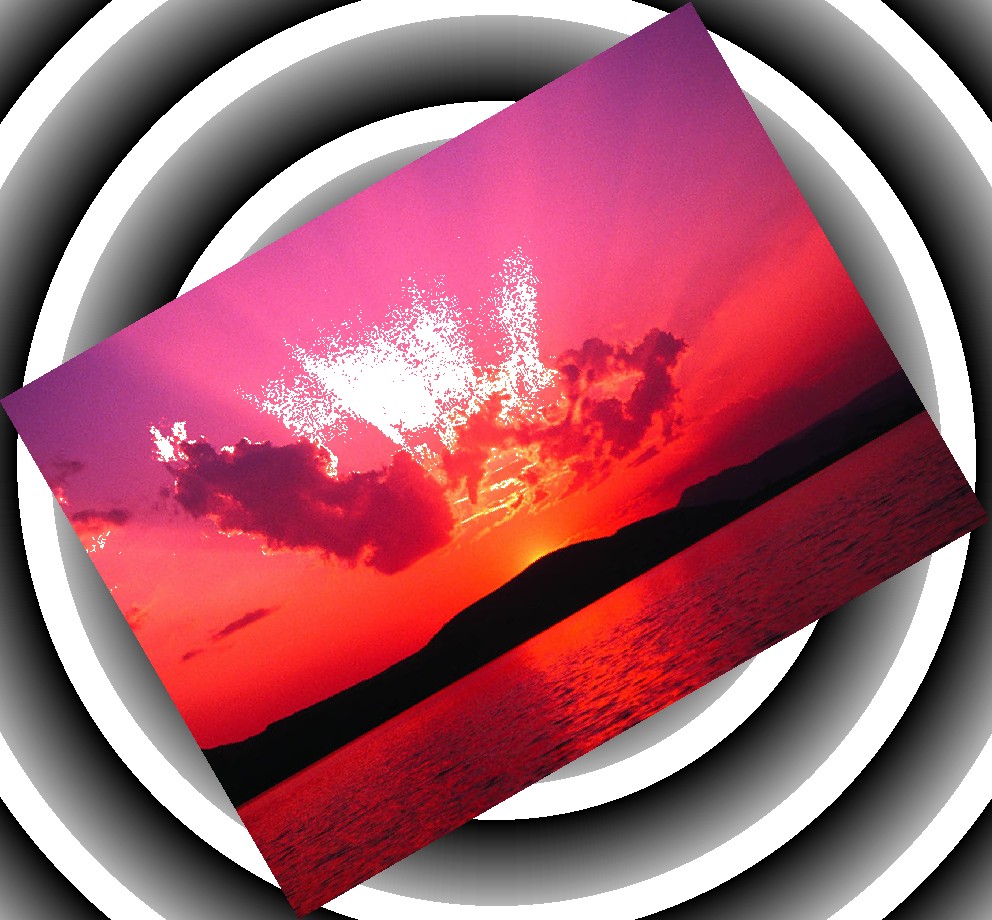

{Trois dialogues de réglage de la rotation d'un bitmap,
d'ajustement avec un seuil d'un bitmap et aussi pour ajouter des bandes régulièrement sur une image.}
{Tu auras beau dire c'est encore denis bertin qui l'a écrit}
{Un logiciel écrit exclusivement écrit par son auteur le 19.6.2012}
{avec un ascenseur pour positionner la rotation en degré by denis bertin}
{avec une couleur de fond définit par denis le 20.6.2012 by denis bertin}
{Improve and amélioré par denis bertin pour créer des pixels plus important le 20.6.2012}
interface
uses windows,Whelp,WBase,Messages,wformebm,c_color,
graphics,wregles,dialbase,lec_color,g_base,Dialombre;
type
TRotation_visu = class(Dialombre.TCadre_button)
procedure setupwindow; override;
procedure wmPaint(var Msg: TMessage); override;
procedure wmLBUTTONDOWN(var Msg: TMessage); override;
procedure wmLBUTTONUP(var Msg: TMessage); override;
procedure wmMOUSEMOVE(var Msg: TMessage); override;
procedure Set_Angle(un_angle:integer);
public angle:integer; captured:boolean;
end;
Tcolor_button_interface = class(c_color.Tcolor_degra_button)
function get_color:longint; override;
procedure WMLBUTTONDOWN(var Msg: TMessage); override;
procedure WMRBUTTONUP(var Msg: TMessage); override;
procedure WMCommand(var Msg: TMessage); override;
end;
Tcolor_button = class(c_color.Tcolor_degra_button)
function get_color:longint; override;
end;
TCenter_button = class(c_color.Tcolor_degra_button)
function get_color:longint; override;
end;
TCentre_On_Plot = class(Whelp.ThelpDialog)
constructor Create(AParent:WBase.TWindow);
procedure Setupwindow; override;
procedure WMCommand(var Msg: TMessage); override;
procedure wmset_painture_control(var Msg: TMessage); override;
private
radio_mini_guide:Wbase.tradiobutton;
radio_Placer_des_guides:Wbase.tradiobutton;
radio_placer_des_lignes:Wbase.tradiobutton;
check_en_couleur:Wbase.TCheckBox;
check_multicouleur:Wbase.TCheckBox;
color:U_add_ray.TCenter_button;
end;
TRay_Bitmap_Dialog = class(Whelp.ThelpDialog)
constructor Create(AParent:WBase.TWindow; forme:wformebm.Tforme_TBitMap);
procedure Setupwindow; override;
procedure WMHSCROLL(var Msg: TMessage); override;
procedure Ok; override;
procedure wmset_painture_control(var Msg: TMessage); override;
public
scroll_vertical,scroll_horizontal:WBase.TScrollbar;
static_vertical,static_horizontal:Wbase.Tstatic;
color:Tcolor_button;
check_inversion_de_la_couleur:wbase.Tcheckbox;
num_edit_size_pixel:dialbase.TNumEdit_plus_moins; {ecrit par denis bertin}
private
une_forme:wformebm.Tforme_TBitMap;
end; {TRay_Bitmap_Dialog}
TRotation_d_image = class(Whelp.ThelpDialog)
constructor Create(AParent:WBase.TWindow; forme:wformebm.Tforme_TBitMap;
une_colec_guide_anglulaire:wregles.Tcollec_guide);
procedure wmclose(var Msg: TMessage); override;
procedure Setupwindow; override;
procedure WMCommand(var Msg: TMessage); override;
procedure Faire_une_rotation(With_angle_radian:real);
procedure WMHSCROLL(var Msg: TMessage); override;
procedure wmset_painture_control(var Msg: TMessage); override;
procedure wmnum_edit_change(var msg:TMessage); override;
procedure Affecter_l_angle;
procedure Affecter_le_nom_de_la_couleur;
procedure ok; override;
public
scroll_rotation:WBase.TScrollbar;
static_angle_degree:Wbase.Tstatic;
static_nom_de_la_couleur:Wbase.Tstatic;
static_html_color:Wbase.Tstatic;
check_placer_des_guides_angulaires:Wbase.Tcheckbox;
check_Augmenter_la_taille_de_l_image:Wbase.Tcheckbox;
check_Adapter_la_taille_du_cadre:Wbase.Tcheckbox;
check_Au_lieu_d_utiliser_la_couleur_de_fond:Wbase.Tcheckbox;
check_ajouter_un_gradian_radial:Wbase.Tcheckbox;
check_ajouter_un_gradian_lineaire:Wbase.Tcheckbox;
num_edit_the_modulation:dialbase.TNumEdit_plus_moins;
inter_color:Tcolor_button_interface;
color:Tcolor_button;
rotation:U_add_ray.TRotation_visu; {denis bertin}
private
une_forme:wformebm.Tforme_TBitMap;
bitmap_before_rotation:graphics.tbitmap;
colec_guide_anglulaire:wregles.Tcollec_guide;
ancien_rectangle:trect;
col_color:lec_color.T_Col_Named; {pour stocker les noms des couleurs-c'db}
end;
{Idée d'un photographe recontrer à la friche d'Emmetrop le 24.6.2012 by denis}
TAjuster_avec_seuil = class(Whelp.ThelpDialog)
constructor Create(AParent:WBase.TWindow; forme:wformebm.Tforme_TBitMap);
procedure Setupwindow; override;
procedure Afficher_le_pourcentage;
procedure WMHSCROLL(var Msg: TMessage); override;
procedure wmnum_edit_change(var msg:TMessage); override;
procedure WMCommand(var Msg: TMessage); override;
procedure Effectuer_le_calcul;
public
scroll_seuil:WBase.TScrollbar;
static_pourcentage:Wbase.Tstatic;
num_edit_coefficient:dialbase.TNumEdit_plus_moins; {ecrit par denis bertin}
radio_plus_grand:Wbase.tradiobutton;
radio_plus_petit:Wbase.tradiobutton;
check_limitation_de_la_lumiere:Wbase.TCheckBox;
private
une_forme:wformebm.Tforme_TBitMap;
bitmap_before_rotation:graphics.tbitmap;
end; {TAjuster_avec_seuil}
type
Trec_transfert_centre_on_plot = record
radio_mini_guide:bool;
radio_Placer_des_guides:bool;
radio_placer_des_lignes:bool;
check_en_couleur:bool;
check_multicouleur:bool;
end;
var rec_transfert_centre_on_plot : Trec_transfert_centre_on_plot;
var k_color_choose_to_cross_ray : tcolorref = g_base.rgb_blanc;
k_color_choose_center_ray : tcolorref = g_base.rgb_rouge;
k_color_interface : tcolorref = g_base.rgb_blanc;
implementation
uses my_math,hls_rvb,wutil,sysutils,utile,u_object,deformat,u_file_select,uregedit,wmenuk,z_open_file,
U_fast_bitmap,U_chercher_mes_ato,haide,k_dll; {Celui qui l'a écrit en france c'est denis}
const id_reset_the_color_for_all_I_love = 123456;
function Tcolor_button_interface.get_color:longint; begin result:=k_color_interface; end;
procedure Tcolor_button_interface.WMCommand(var Msg: TMessage);
begin
inherited WMCommand(Msg);
if msg.wparam=id_reset_the_color_for_all_I_love then
begin
k_color_interface:=g_base.RGB_Blanc;
invalidaterect(self.hwindow,Nil,false);
UpdateWIndow(self.hwindow);
invalidaterect(TRotation_d_image(parent).rotation.hwindow,Nil,false);
UpdateWIndow(TRotation_d_image(parent).rotation.hwindow);
uregedit.RegWritePrivateProfileInt(wmenuk.circle,z_open_file.string_je_suis_bien_d_accord_avec_mon_interface,k_color_interface);
end;
end; {Tcolor_button_interface.WMCommand}
procedure Tcolor_button_interface.WMRBUTTONUP(var Msg: TMessage);
var un_point_menu_popup:tpoint;
another_trackmenu:hmenu;
begin
another_trackmenu:=Createpopupmenu;
Appendmenu(another_trackmenu,MF_STRING,id_reset_the_color_for_all_I_love,z_open_file.string_reset);
GetCursorPos(un_point_menu_popup);
TrackPopupMenu(another_trackmenu,0,un_point_menu_popup.x,un_point_menu_popup.y,0,hwindow,nil);
end;
procedure Tcolor_button_interface.wmLBUTTONDOWN(var Msg: TMessage);
begin
if u_file_select.Affiche_le_dialogue_des_couleur_window(self.hwindow,k_color_interface) then
begin
invalidaterect(self.hwindow,Nil,false);
UpdateWIndow(self.hwindow);
invalidaterect(TRotation_d_image(parent).rotation.hwindow,Nil,false);
UpdateWIndow(TRotation_d_image(parent).rotation.hwindow);
uregedit.RegWritePrivateProfileInt(wmenuk.circle,z_open_file.string_je_suis_bien_d_accord_avec_mon_interface,k_color_interface);
end;
end;
function Tcolor_button.get_color:longint;
begin result:=k_color_choose_to_cross_ray; end;
function TCenter_button.get_color:longint;
begin result:=k_color_choose_center_ray; end;
procedure TRotation_visu.SetupWindow;
begin
inherited setupwindow;
captured:=false;
end;
procedure TRotation_visu.Set_Angle(un_angle:integer);
begin
self.angle:=un_angle;
invalidaterect(self.hwindow,Nil,false);
UpdateWIndow(self.hwindow);
end;
procedure TRotation_visu.wmLBUTTONDOWN(var Msg: TMessage);
begin
setcapture(self.hwindow);
captured:=true;
end;
procedure TRotation_visu.wmLBUTTONUP(var Msg: TMessage);
begin
ReleaseCapture;
captured:=false;
end;
procedure TRotation_visu.wmMOUSEMOVE(var Msg: TMessage);
var arect:trect;
point_souris:tpoint;
begin
if not captured then exit;
point_souris.x:=Smallint(loword(msg.lparam));
point_souris.y:=Smallint(hiword(msg.lparam));
getclientrect(hwindow,arect);
self.angle:=round(utile.angle_degree(
arect.Right div 2,arect.bottom div 2,point_souris.x,point_souris.y));
invalidaterect(self.hwindow,Nil,false);
UpdateWindow(self.hwindow);
with TRotation_d_image(parent) do
begin
scroll_rotation.SetPosition(self.angle);
Affecter_l_angle;
Faire_une_rotation(self.angle*utile.pisur180);
end;
postmessage(TRotation_d_image(parent).hwindow,wm_command,0,0);
end;
procedure TRotation_visu.wmPaint(var Msg: TMessage);
var i,maximum:integer;paintStruct:TPaintStruct;
paintdc:hdc;
arect:trect;
apencil:hpen;
begin
paintdc:=beginpaint(hwindow,paintStruct);
getclientrect(hwindow,arect);
inherited Paint_rect(paintdc);
maximum:=utile.idistance(arect.Right div 2,arect.bottom div 2,arect.Right,arect.bottom)-15;
for i:=maximum downto 0 do
begin
if k_color_interface=g_base.rgb_blanc then
apencil:=selectobject(paintdc,createpen(PS_Solid,3,
hls_rvb.Get_HLS_RGB(360*i/maximum,0.75,1)))
else
apencil:=selectobject(paintdc,createpen(PS_Solid,3,
deformat.IN_Between_longint_Exp(g_base.RGB_Blanc,k_color_interface,maximum-i,maximum)));
ellipse(paintdc,arect.Right div 2 - i,arect.bottom div 2 - i,
arect.Right div 2+i,arect.bottom div 2+i);
deleteobject(selectobject(paintdc,apencil));
end;
moveto(paintdc,arect.Right div 2,arect.bottom div 2);
lineto(paintdc,
arect.Right div 2+round(cos(self.angle*pi/180)*(arect.Right div 2-5)),
arect.bottom div 2-round(sin(self.angle*pi/180)*(arect.Right div 2-5)));
endpaint(hwindow,paintStruct);
end;
Constructor TCentre_On_Plot.Create(AParent:WBase.TWindow);
const dial_Centre_On_Plot = 1794;
id_radio_mini_guide = 1000;
id_radio_Placer_des_guides = 1001;
id_radio_placer_des_lignes = 1004;
id_check_en_couleur = 1002;
id_check_multicouleur = 1003;
id_couleur_bouton = 1005;
begin
inherited Create (AParent,dial_Centre_On_Plot,0);
self.TransferBuffer:=@rec_transfert_centre_on_plot;
self.radio_mini_guide:=Wbase.tradiobutton.create(self,id_radio_mini_guide,0);
self.radio_Placer_des_guides:=Wbase.tradiobutton.create(self,id_radio_Placer_des_guides,0);
self.radio_placer_des_lignes:=Wbase.tradiobutton.create(self,id_radio_placer_des_lignes,0);
self.check_en_couleur:=Wbase.TCheckBox.create(self,id_check_en_couleur,0);
self.check_multicouleur:=Wbase.TCheckBox.create(self,id_check_multicouleur,0);
self.color:=U_add_ray.TCenter_button.Create(self,id_couleur_bouton,0);
end;
procedure TCentre_On_Plot.wmset_painture_control(var Msg: TMessage);
begin
U_add_ray.k_color_choose_center_ray:=msg.lparam;
end;
procedure TCentre_On_Plot.Setupwindow;
begin
inherited Setupwindow;
postmessage(self.hwindow,wm_command,0,0);
end;
procedure TCentre_On_Plot.WMCommand(var Msg: TMessage);
const
id_check_en_couleur = 1002;
id_check_multicouleur = 1003;
begin
inherited WMCommand(Msg);
Case msg.wparam of
id_check_en_couleur:
self.check_multicouleur.Uncheck;
id_check_multicouleur:
self.check_en_couleur.Uncheck;
end; {case}
if self.check_multicouleur.GetCheck=bf_checked then
self.color.show(sw_hide) else self.color.show(sw_show);
end; {TCentre_On_Plot.WMCommand}
constructor TRay_Bitmap_Dialog.Create(AParent:WBase.TWindow; forme:wformebm.Tforme_TBitMap);
const dial_id_Ray_Bitmap = 1788;
kid_pixel_size = 1004;
begin
inherited Create (AParent,dial_id_Ray_Bitmap,0);
self.scroll_vertical:=WBase.TScrollbar.Create(self,1000,0);
self.scroll_horizontal:=WBase.TScrollbar.Create(self,1001,0);
self.static_vertical:=Wbase.Tstatic.create(self,1100,0);
self.static_horizontal:=Wbase.Tstatic.create(self,1101,0);
self.color:=Tcolor_button.create(self,1002,0);
self.check_inversion_de_la_couleur:=wbase.Tcheckbox.create(self,1003,0);
self.num_edit_size_pixel:=dialbase.TNumEdit_plus_moins.Create(self,kid_pixel_size,3,1,24,0);
self.une_forme:=forme;
end;
procedure TRay_Bitmap_Dialog.Setupwindow;
var apc:pc100;
begin
inherited Setupwindow;
self.scroll_vertical.SetRange(1,100); self.scroll_vertical.SetPosition(10);
self.scroll_horizontal.SetRange(1,100); self.scroll_horizontal.SetPosition(10);
inttopchar(scroll_vertical.GetPosition,apc); static_vertical.SetText(apc);
inttopchar(scroll_horizontal.GetPosition,apc); static_horizontal.SetText(apc);
self.num_edit_size_pixel.Set_num_value(1);
end;
procedure TRay_Bitmap_Dialog.WMHSCROLL(var Msg: TMessage);
var hwndScrollBar:hwnd;
apc:pc100;
begin
inherited WMHSCROLL(Msg);
hwndScrollBar:=msg.LParam;
if hwndScrollBar=scroll_vertical.hwindow then
begin
inttopchar(scroll_vertical.GetPosition,apc);
static_vertical.SetText(apc);
end
else if hwndScrollBar=scroll_horizontal.hwindow then
begin
inttopchar(scroll_horizontal.GetPosition,apc);
static_horizontal.SetText(apc);
end;
end; {TRay_Bitmap_Dialog.WMHSCROLL}
procedure TRay_Bitmap_Dialog.Ok;
var i,j,k,l:integer;
so_this_variable_is_acced_frequently:integer; {in the cache in the stack segment}
un_acces_simplifier_a_la_variable_check:boolean;
rapide_ce_bitmap:U_fast_bitmap.TFastBitmap2;
old_cursor:hcursor;
begin
old_cursor:=Setcursor(haide.G_Cursor.wait_cursor);
rapide_ce_bitmap.Copy(self.une_forme.BitMap);
so_this_variable_is_acced_frequently:=self.num_edit_size_pixel.Get_num_value;
un_acces_simplifier_a_la_variable_check:=self.check_inversion_de_la_couleur.GetCheck=bf_checked;
for i:=0 to scroll_vertical.GetPosition do
begin
if scroll_vertical.GetPosition<>0 then
begin
haide.Show_horloge_curseur(100*i/scroll_vertical.GetPosition);
U_chercher_mes_ato.Affiche_une_ligne_de_progression(round(100*i/scroll_vertical.GetPosition));
end;
for j:=0 to self.une_forme.BitMap.Height do
begin
if so_this_variable_is_acced_frequently=1 then
begin
if un_acces_simplifier_a_la_variable_check then
rapide_ce_bitmap.SetPixel(round(self.une_forme.BitMap.Width*i/scroll_vertical.GetPosition),j,
rapide_ce_bitmap.GetPixel(round(self.une_forme.BitMap.Width*i/scroll_vertical.GetPosition),j) xor $FFFFFF)
else
rapide_ce_bitmap.SetPixel(round(self.une_forme.BitMap.Width*i/scroll_vertical.GetPosition),j,k_color_choose_to_cross_ray);
end
else
begin
for l:=1 to so_this_variable_is_acced_frequently do
for k:=1 to so_this_variable_is_acced_frequently do
begin
if un_acces_simplifier_a_la_variable_check then
rapide_ce_bitmap.SetPixel(round(self.une_forme.BitMap.Width*i/scroll_vertical.GetPosition)+k,j+l,
rapide_ce_bitmap.GetPixel(round(self.une_forme.BitMap.Width*i/scroll_vertical.GetPosition)+k,j+l) xor $FFFFFF)
else
rapide_ce_bitmap.SetPixel(round(self.une_forme.BitMap.Width*i/scroll_vertical.GetPosition)+k,j+l,k_color_choose_to_cross_ray);
end;
end;
end;
end; {for i}
for i:=0 to self.une_forme.BitMap.width do
begin
if scroll_vertical.GetPosition<>0 then
begin
haide.Show_horloge_curseur(100*i/self.une_forme.BitMap.width);
U_chercher_mes_ato.Affiche_une_ligne_de_progression(round(100*i/self.une_forme.BitMap.width));
end;
for j:=0 to scroll_horizontal.GetPosition do
begin
if so_this_variable_is_acced_frequently=1 then
begin
if un_acces_simplifier_a_la_variable_check then
rapide_ce_bitmap.SetPixel(i,round(self.une_forme.BitMap.Height*j/scroll_horizontal.GetPosition),
rapide_ce_bitmap.GetPixel(i,round(self.une_forme.BitMap.Height*j/scroll_horizontal.GetPosition)) xor $FFFFFF)
else
self.une_forme.BitMap.canvas.Pixels[i,round(self.une_forme.BitMap.Height*j/scroll_horizontal.GetPosition)]:=k_color_choose_to_cross_ray;
end
else
begin
for l:=1 to so_this_variable_is_acced_frequently do
for k:=1 to so_this_variable_is_acced_frequently do
begin
if un_acces_simplifier_a_la_variable_check then
rapide_ce_bitmap.Setpixel(i+k,round(self.une_forme.BitMap.Height*j/scroll_horizontal.GetPosition)+l,
rapide_ce_bitmap.GetPixel(i+k,round(self.une_forme.BitMap.Height*j/scroll_horizontal.GetPosition)+l) xor $FFFFFF)
else
rapide_ce_bitmap.SetPixel(i+k,round(self.une_forme.BitMap.Height*j/scroll_horizontal.GetPosition)+l,k_color_choose_to_cross_ray);
end;
end;
end;
end; {for i}
Setcursor(old_cursor);
end; {TRay_Bitmap_Dialog.Ok}
procedure TRay_Bitmap_Dialog.wmset_painture_control(var Msg: TMessage);
begin
U_add_ray.k_color_choose_to_cross_ray:=msg.lparam;
end;
Constructor TRotation_d_image.Create(AParent:WBase.TWindow;
forme:wformebm.Tforme_TBitMap;
une_colec_guide_anglulaire:wregles.Tcollec_guide);
const id_scroll_rotation = 1000;
id_static_angle_degree = 1001;
id_check_placer_des_guides = 1003;
dial_id_rotation_parametrique = 1789;
id_static_nom_de_la_couleur = 2000;
id_static_html_color = 2001;
id_check_Augmenter_la_taille_de_l_image = 1006;
id_check_Adapter_la_taille_du_cadre = 1007;
id_Au_lieu_d_utiliser_la_couleur_de_fond = 1008;
id_check_ajouter_un_gradian_radial = 1010;
id_check_ajouter_un_gradian_lineaire = 1011;
id_num_edit_the_modulation = 1012;
id_rotation = 500;
begin
inherited Create(AParent,dial_id_rotation_parametrique,haide.HELPId_effectuer_une_rotation);
self.colec_guide_anglulaire:=une_colec_guide_anglulaire;
self.scroll_rotation:=WBase.TScrollbar.Create(self,id_scroll_rotation,0);;
self.static_angle_degree:=Wbase.Tstatic.create(self,id_static_angle_degree,0);
self.static_nom_de_la_couleur:=Wbase.Tstatic.create(self,id_static_nom_de_la_couleur,0);
self.static_html_color:=Wbase.Tstatic.create(self,id_static_html_color,0);
self.check_placer_des_guides_angulaires:=Wbase.Tcheckbox.create(self,id_check_placer_des_guides,0);
self.check_Augmenter_la_taille_de_l_image:=Wbase.Tcheckbox.create(self,id_check_Augmenter_la_taille_de_l_image,0);
self.check_Adapter_la_taille_du_cadre:=Wbase.Tcheckbox.create(self,id_check_Adapter_la_taille_du_cadre,0);
self.check_Au_lieu_d_utiliser_la_couleur_de_fond:=Wbase.Tcheckbox.create(self,id_Au_lieu_d_utiliser_la_couleur_de_fond,0);
self.check_ajouter_un_gradian_radial:=Wbase.Tcheckbox.create(self,id_check_ajouter_un_gradian_radial,0);
self.check_ajouter_un_gradian_lineaire:=Wbase.Tcheckbox.create(self,id_check_ajouter_un_gradian_lineaire,0);
self.num_edit_the_modulation:=dialbase.TNumEdit_plus_moins.create(self,id_num_edit_the_modulation,4,0,1000,0);
self.num_edit_the_modulation.Enable_Previent_ton_Parent(true);
self.rotation:=U_add_ray.TRotation_visu.create(self,id_rotation,0);
self.bitmap_before_rotation:=graphics.tbitmap.create;
self.bitmap_before_rotation.assign(forme.BitMap);
self.inter_color:=Tcolor_button_interface.create(self,1009,0);
self.color:=Tcolor_button.create(self,1002,0);
self.une_forme:=forme;
self.ancien_rectangle:=forme.rect;
Self.col_color:=lec_color.T_Col_Named.Create;
if not self.col_color.Lecture_fichier_couleur then Self.col_color:=nil;
end;
procedure TRotation_d_image.wmclose(var Msg: TMessage);
begin
if Self.col_color<>nil then
begin
{Libération des ressources}
Self.col_color.Free;
Self.col_color:=nil;
end;
inherited wmclose(Msg);
end;
procedure TRotation_d_image.Setupwindow;
var apc:wutil.pc100;
begin
inherited Setupwindow;
self.scroll_rotation.SetRange(0,360);
self.scroll_rotation.SetPosition(0);
inttopchar(scroll_rotation.GetPosition,apc);
strcat(strcat(apc,wutil.kpc_space),wutil.kpc_degree);
self.static_angle_degree.SetText(apc);
postmessage(self.hwindow,wm_command,0,0);
Self.Affecter_le_nom_de_la_couleur;
self.Num_edit_the_modulation.Set_num_value(0);
end; {TRotation_d_image.Setupwindow}
procedure TRotation_d_image.WMCommand(var Msg: TMessage);
const id_btn_plus_5 = 1004;
id_btn_moins_5 = 1005;
id_check_Augmenter_la_taille_de_l_image = 1006;
id_check_Adapter_la_taille_du_cadre = 1007;
id_Au_lieu_d_utiliser_la_couleur_de_fond = 1008;
id_autoriser_la_couleur_du_fond = 700;
id_check_ajouter_un_gradian_radial = 1010;
id_check_ajouter_un_gradian_lineaire = 1011;
id_comment_modulation = 1013;
var un_angle:integer;
begin
inherited WMCommand(Msg);
enablewindow(GetItemHandle(id_ok),
(scroll_rotation.GetPosition<>0) and (scroll_rotation.GetPosition<>360));
case msg.wparam of
id_cancel:
begin
self.une_forme.rect:=self.ancien_rectangle;
self.une_forme.BitMap.Assign(self.bitmap_before_rotation);
invalidaterect(parent.hwindow,nil,false);
end;
id_btn_plus_5:
begin
un_angle:=scroll_rotation.GetPosition;
un_angle:=(un_angle+5) mod 360;
scroll_rotation.SetPosition(un_angle);
Affecter_l_angle;
Faire_une_rotation(un_angle*utile.pisur180);
end;
id_btn_moins_5:
begin {dbn}
un_angle:=scroll_rotation.GetPosition;
if un_angle>5 then
dec(un_angle,5)
else
un_angle:=(360+un_angle-5) mod 360;
scroll_rotation.SetPosition(un_angle);
Affecter_l_angle;
Faire_une_rotation(un_angle*utile.pisur180);
end;
id_Au_lieu_d_utiliser_la_couleur_de_fond:
begin
self.check_ajouter_un_gradian_lineaire.Uncheck;
self.check_ajouter_un_gradian_radial.Uncheck;
un_angle:=scroll_rotation.GetPosition;
Faire_une_rotation(un_angle*utile.pisur180);
end;
id_check_Augmenter_la_taille_de_l_image,
id_check_Adapter_la_taille_du_cadre:
begin
Faire_une_rotation(scroll_rotation.GetPosition*utile.pisur180);
end;
2000..3000:
begin //Ecrit par denis bertin
Self.scroll_rotation.SetPosition(msg.wparam-2000);
Self.Affecter_l_angle;
Self.Faire_une_rotation(Self.scroll_rotation.GetPosition*utile.pisur180);
end;
id_check_ajouter_un_gradian_radial: {écrit par Denis}
begin
self.check_ajouter_un_gradian_lineaire.Uncheck;
check_Au_lieu_d_utiliser_la_couleur_de_fond.Uncheck;
un_angle:=scroll_rotation.GetPosition;
Faire_une_rotation(un_angle*utile.pisur180);
end;
id_check_ajouter_un_gradian_lineaire:
begin
self.check_ajouter_un_gradian_radial.Uncheck;
self.check_Au_lieu_d_utiliser_la_couleur_de_fond.Uncheck;
un_angle:=scroll_rotation.GetPosition;
Faire_une_rotation(un_angle*utile.pisur180);
end;
end; {la case de Vierzon}
enablewindow(self.check_placer_des_guides_angulaires.hwindow,
(check_Augmenter_la_taille_de_l_image.GetCheck=bf_checked)
and (check_Adapter_la_taille_du_cadre.GetCheck=bf_checked));
if self.check_Au_lieu_d_utiliser_la_couleur_de_fond.GetCheck=bf_checked then
begin
enablewindow(getitemhandle(id_autoriser_la_couleur_du_fond),false);
static_nom_de_la_couleur.show(sw_hide);
static_html_color.show(sw_hide);
color.show(sw_hide);
end
else
begin
enablewindow(getitemhandle(id_autoriser_la_couleur_du_fond),true);
static_nom_de_la_couleur.show(sw_show);
static_html_color.show(sw_show);
color.show(sw_show);
end;
if (self.check_Au_lieu_d_utiliser_la_couleur_de_fond.GetCheck=bf_checked)
or (self.check_ajouter_un_gradian_radial.GetCheck=bf_checked)
or (self.check_ajouter_un_gradian_lineaire.GetCheck=bf_checked) then
begin
self.num_edit_the_modulation.Show(sw_show);
enablewindow(GetItemHandle(id_comment_modulation),true);
end
else
begin
self.num_edit_the_modulation.Show(sw_hide);
enablewindow(GetItemHandle(id_comment_modulation),false);
end;
end; {TRotation_d_image.WMCommand}
procedure TRotation_d_image.Affecter_l_angle;
var apc:pc100;
begin
rotation.Set_Angle(scroll_rotation.GetPosition);
inttopchar(scroll_rotation.GetPosition,apc);
strcat(strcat(apc,wutil.kpc_space),wutil.kpc_degree);
self.static_angle_degree.SetText(apc);
updatewindow(self.static_angle_degree.hwindow);
end;
{If a methode is call twice then make a methode deliberatry-written by denis}
{Si une méthode doit être utilisé deux fois, faire une procedure exprès}
procedure TRotation_d_image.Faire_une_rotation(With_angle_radian:real);
begin
self.une_forme.rect:=self.ancien_rectangle;
self.une_forme.BitMap.Assign(self.bitmap_before_rotation);
self.une_forme.do_rotation(parent.hwindow,With_angle_radian,
k_color_choose_to_cross_ray,
self.check_Augmenter_la_taille_de_l_image.GetCheck=bf_checked,
self.check_Adapter_la_taille_du_cadre.GetCheck=bf_checked,
self.check_Au_lieu_d_utiliser_la_couleur_de_fond.GetCheck=bf_checked,
self.check_ajouter_un_gradian_radial.GetCheck=bf_checked,
self.check_ajouter_un_gradian_lineaire.GetCheck=bf_checked,
self.Num_edit_the_modulation.Get_num_value);
invalidaterect(parent.hwindow,nil,false);
updatewindow(parent.hwindow);
end;
procedure TRotation_d_image.wmnum_edit_change(var msg:TMessage);
begin
Self.Faire_une_rotation(scroll_rotation.GetPosition*utile.pisur180);
//Pour actualiser l'écran a chaque fois que le message est reçu by db.
Invalidaterect(self.hwindow,nil,false);
updatewindow(self.hwindow);
end;
procedure TRotation_d_image.wmset_painture_control(var Msg: TMessage);
begin
U_add_ray.k_color_choose_to_cross_ray:=msg.lparam;
updatewindow(self.hwindow);
Self.Faire_une_rotation(scroll_rotation.GetPosition*utile.pisur180);
Self.Affecter_le_nom_de_la_couleur;
end;
procedure TRotation_d_image.Affecter_le_nom_de_la_couleur;
var une_couleur_avec_son_nom:lec_color.T_color_name;
pc_color_html:pc100;
begin
if (Self.Col_color<>nil) then
begin
Self.Col_color.Recheche_couleur_plus_proche(
U_add_ray.k_color_choose_to_cross_ray,une_couleur_avec_son_nom);
if une_couleur_avec_son_nom<>nil then
self.static_nom_de_la_couleur.settext(une_couleur_avec_son_nom.name);
end;
k_dll.DLL_TcolorRef_to_text_html(U_add_ray.k_color_choose_to_cross_ray,pc_color_html,false);
self.static_html_color.SetText(pc_color_html);
end;
procedure TRotation_d_image.WMHSCROLL(var Msg: TMessage);
var apc:pc100;
hwndScrollBar:hwnd;
begin
inherited WMHSCROLL(Msg);
hwndScrollBar:=msg.LParam;
if hwndScrollBar=self.scroll_rotation.hwindow then
begin
Self.Affecter_l_angle;
Self.Faire_une_rotation(scroll_rotation.GetPosition*utile.pisur180);
postmessage(self.hwindow,wm_command,0,0);
end
end;
procedure TRotation_d_image.ok;
var un_centre_de_rotation:tpoint;
angle_en_radian:real;
begin
if (self.check_placer_des_guides_angulaires.GetCheck=BF_Checked)
and (check_Augmenter_la_taille_de_l_image.GetCheck=bf_checked)
and (check_Adapter_la_taille_du_cadre.GetCheck=bf_checked) then
begin
if self.Colec_guide_anglulaire<>nil then
begin
with self.colec_guide_anglulaire do
begin
angle_en_radian:=self.scroll_rotation.GetPosition*utile.pisur180;
un_centre_de_rotation.x:=(self.une_forme.rect.Left+self.une_forme.rect.right) div 2;
un_centre_de_rotation.y:=(self.une_forme.rect.top+self.une_forme.rect.bottom) div 2;
add(U_object.T_Angle_Guide.Create(
un_centre_de_rotation.x+round(cos(angle_en_radian+utile.pisur2)*(ancien_rectangle.bottom-ancien_rectangle.top)/2),
un_centre_de_rotation.y-round(sin(angle_en_radian+utile.pisur2)*(ancien_rectangle.bottom-ancien_rectangle.top)/2),angle_en_radian));
add(U_object.T_Angle_Guide.Create(
un_centre_de_rotation.x+round(cos(angle_en_radian-utile.pisur2)*(ancien_rectangle.bottom-ancien_rectangle.top)/2),
un_centre_de_rotation.y-round(sin(angle_en_radian-utile.pisur2)*(ancien_rectangle.bottom-ancien_rectangle.top)/2),angle_en_radian));
add(U_object.T_Angle_Guide.Create(
un_centre_de_rotation.x+round(cos(angle_en_radian)*(ancien_rectangle.right-ancien_rectangle.left)/2),
un_centre_de_rotation.y-round(sin(angle_en_radian)*(ancien_rectangle.right-ancien_rectangle.left)/2),angle_en_radian+utile.pisur2));
add(U_object.T_Angle_Guide.Create(
un_centre_de_rotation.x+round(cos(angle_en_radian+PI)*(ancien_rectangle.right-ancien_rectangle.left)/2),
un_centre_de_rotation.y-round(sin(angle_en_radian+PI)*(ancien_rectangle.right-ancien_rectangle.left)/2),angle_en_radian+utile.pisur2));
if false then
begin
add(U_object.T_Angle_Guide.Create(
un_centre_de_rotation.x+round(cos(angle_en_radian+utile.pisur2)*(self.une_forme.rect.bottom-self.une_forme.rect.top)/2),
un_centre_de_rotation.y-round(sin(angle_en_radian+utile.pisur2)*(self.une_forme.rect.bottom-self.une_forme.rect.top)/2),angle_en_radian));
add(U_object.T_Angle_Guide.Create(
un_centre_de_rotation.x+round(cos(angle_en_radian-utile.pisur2)*(self.une_forme.rect.bottom-self.une_forme.rect.top)/2),
un_centre_de_rotation.y-round(sin(angle_en_radian-utile.pisur2)*(self.une_forme.rect.bottom-self.une_forme.rect.top)/2),angle_en_radian));
add(U_object.T_Angle_Guide.Create(
un_centre_de_rotation.x+round(cos(angle_en_radian)*(self.une_forme.rect.right-self.une_forme.rect.left)/2),
un_centre_de_rotation.y-round(sin(angle_en_radian)*(self.une_forme.rect.right-self.une_forme.rect.left)/2),angle_en_radian+utile.pisur2));
add(U_object.T_Angle_Guide.Create(
un_centre_de_rotation.x+round(cos(angle_en_radian+PI)*(self.une_forme.rect.right-self.une_forme.rect.left)/2),
un_centre_de_rotation.y-round(sin(angle_en_radian+PI)*(self.une_forme.rect.right-self.une_forme.rect.left)/2),angle_en_radian+utile.pisur2));
end;
end;
end;
end;
end;
(************* Accentuer selon un seuil écrit par denis bertin **24.6.2012*****)
constructor TAjuster_avec_seuil.Create(AParent:WBase.TWindow; forme:wformebm.Tforme_TBitMap);
const dial_id_Accentuer = 1791;
id_scroll_seuil = 100;
id_static_pourcentage = 101;
id_num_edit_coefficient = 102;
id_radio_plus_grand = 200;
id_radio_plus_petit = 201;
id_check_limitation_de_la_lumiere = 300;
begin
inherited Create(AParent,dial_id_Accentuer,0);
self.scroll_seuil:=WBase.TScrollbar.create(self,id_scroll_seuil,0);
self.static_pourcentage:=Wbase.Tstatic.create(self,id_static_pourcentage,0);
self.num_edit_coefficient:=dialbase.TNumEdit_plus_moins.Create(self,id_num_edit_coefficient,4,0,1000,0);
self.num_edit_coefficient.Enable_Previent_ton_Parent(true);
self.radio_plus_grand:=Wbase.tradiobutton.create(self,id_radio_plus_grand,0);
self.radio_plus_petit:=Wbase.tradiobutton.create(self,id_radio_plus_petit,0);
self.check_limitation_de_la_lumiere:=Wbase.TCheckBox.create(self,id_check_limitation_de_la_lumiere,0);
self.une_forme:=forme;
self.bitmap_before_rotation:=graphics.tbitmap.create;
self.bitmap_before_rotation.assign(forme.BitMap);
end;
procedure TAjuster_avec_seuil.Setupwindow;
begin
inherited Setupwindow;
self.check_limitation_de_la_lumiere.Check;
self.radio_plus_petit.Check;
self.scroll_seuil.SetRange(0,100);
self.scroll_seuil.SetPosition(20);
self.num_edit_coefficient.Set_num_value(144);
afficher_le_pourcentage;
end;
procedure TAjuster_avec_seuil.Afficher_le_pourcentage;
var apc:pc100;
begin
inttopchar(self.scroll_seuil.GetPosition,apc);
strcat(apc,wutil.kpc_pourcent);
self.static_pourcentage.SetText(apc);
updatewindow(self.static_pourcentage.hwindow);
end;
procedure TAjuster_avec_seuil.wmnum_edit_change(var msg:TMessage);
begin
updatewindow(self.num_edit_coefficient.hwindow);
Effectuer_le_calcul;
end;
procedure TAjuster_avec_seuil.WMHSCROLL(var Msg: TMessage);
begin
inherited WMHSCROLL(Msg);
Afficher_le_pourcentage;
Effectuer_le_calcul;
end;
procedure TAjuster_avec_seuil.effectuer_le_calcul;
var i,j:integer;
hue,lum,sat:real;
seuil:real;
coeff:real;
rapide:U_fast_bitmap.TFastBitmap2;
bool_plus_petit:boolean;
bool_limitation:boolean;
begin
bool_limitation:=self.check_limitation_de_la_lumiere.GetCheck=Bf_Checked;
bool_plus_petit:=self.radio_plus_petit.GetCheck=Bf_Checked;
self.une_forme.BitMap.assign(self.bitmap_before_rotation);
rapide.Copy(une_forme.BitMap);
seuil:=self.scroll_seuil.GetPosition/100;
coeff:=self.num_edit_coefficient.Get_num_value/100;
for i:=0 to pred(une_forme.BitMap.Width) do
for j:=0 to pred(une_forme.BitMap.height) do
begin
hls_rvb.tcolorref_to_hls(rapide.GetPixel(i,j),hue,lum,sat);
if bool_plus_petit then
begin
if lum<seuil then
begin
lum:=lum*coeff;
if bool_limitation then
lum:=my_math.REAL_min(1.0,lum);
rapide.SetPixel(i,j,hls_rvb.Get_HLS_RGB(hue,lum,sat));
end;
end
else
begin
if lum>seuil then
begin
lum:=lum*coeff;
if bool_limitation then
lum:=my_math.REAL_min(1.0,lum);
rapide.SetPixel(i,j,hls_rvb.Get_HLS_RGB(hue,lum,sat));
end;
end;
end;
invalidaterect(parent.hwindow,nil,false);
Updatewindow(parent.hwindow);
end; {TAjuster_avec_seuil.effectuer_la_calcul}
procedure TAjuster_avec_seuil.WMCommand(var Msg: TMessage);
const id_essayer = 1002; id_revenir = 1003;
const id_radio_plus_grand = 200;
const id_radio_plus_petit = 201;
const id_check_limitation_de_la_lumiere = 300;
begin
inherited WMCommand(Msg);
case msg.wparam of
id_cancel:
begin
self.une_forme.BitMap.assign(self.bitmap_before_rotation);
invalidaterect(parent.hwindow,nil,false);
end;
id_check_limitation_de_la_lumiere,
id_essayer,id_radio_plus_grand,id_radio_plus_petit:
begin
self.effectuer_le_calcul;
end;
id_revenir:
begin
self.une_forme.BitMap.assign(self.bitmap_before_rotation);
invalidaterect(parent.hwindow,nil,false);
end;
end; {case}
end; {TAjuster_avec_seuil.WMCommand}
begin
with rec_transfert_centre_on_plot do
begin
radio_mini_guide:=true;
radio_Placer_des_guides:=false;
radio_placer_des_lignes:=false;
check_en_couleur:=true;
check_multicouleur:=false;
end;
k_color_interface:=uregedit.RegGetPrivateProfileInt(
wmenuk.circle,z_open_file.string_je_suis_bien_d_accord_avec_mon_interface,g_base.RGB_Blanc);
end.
